Available range
New and old electric power line. to be equipped at the same tower.
Large-span situation.
Strong electric field, much thunder field.
Characteristic
Small diameter, light weight, the span cam reach to 1500m, with a low additional load to the tower.
Strong anti-pull performance, more than 90KN.
Non-metallic structure, good insulated performance, thunder-proof.
The equality sparn and good performance when meeting an emergency.
Good performance of anti-gun.
Good performance of anti-erode
Suitable for bad climate.
Can work without electric stop.

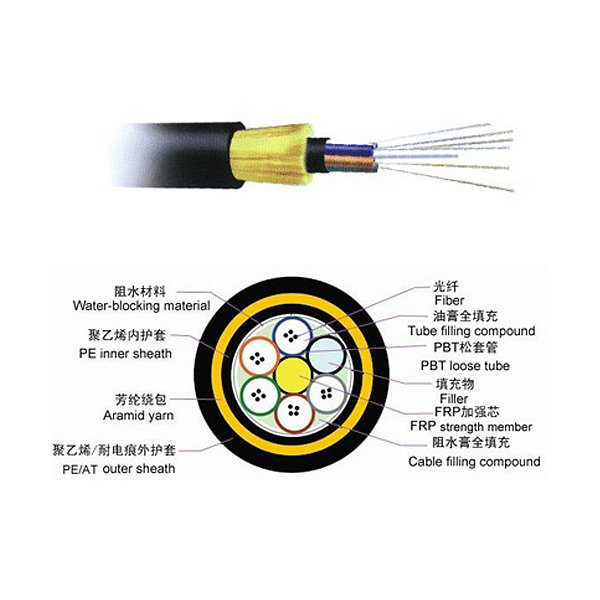

Structure characteristic
Loose tube and non-metallic strengthen
High flexible
Can work under the environment at electric fieldsd?5KV/m.
Source: fiber optic cable

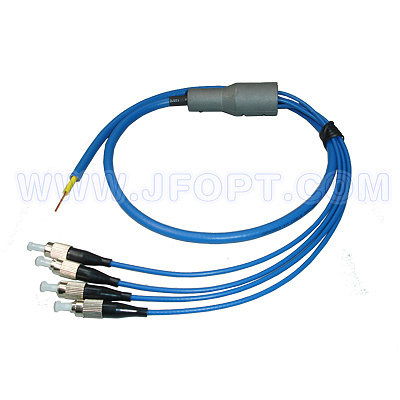

4 cores Single-mode Indoor armoured pigtail
Source: http://www.jfiberoptic.com - armored fiber optic cable

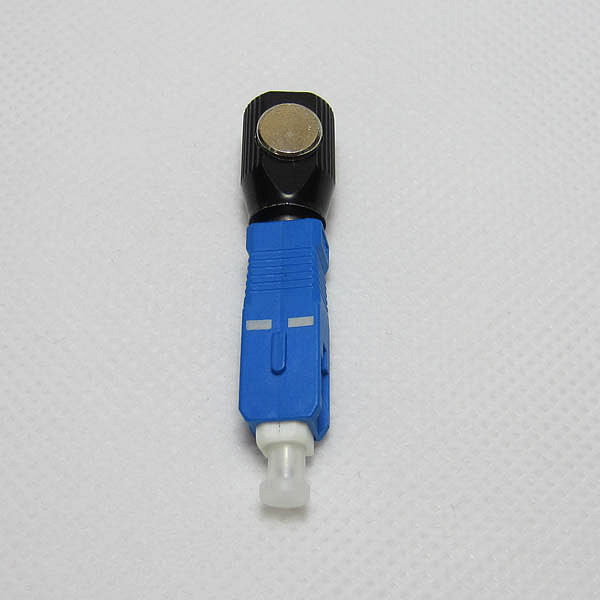

SC Bare Fiber Adapter Brand: JFOPT
The bare fiber adapter is a professional tool for optical single-disk test, suitable for
emergency repairs and temporary fiber splice.
APPLICATIONS
Single-disk fiber optic testing, fiber optic cable repair
Features
Small loss, excellent reflex inhibition
Size precision, matching
Easy to operate and intuitive, can be used by the naked eye
Can be reused,
Singlemode and multimode fiber can be used
Compact design
Accord with Telcordia, ANSI, the TIA / EIA, NTT, JIS and other standards
Parameters
Insertion Loss: <= 0.5dB
Repeatability: <= 0.2dB (1,000 sub-standard plug)
Interchangeability: <= 0.2dB
Operating temperature: -40 ~ +75 degrees Celsius
Storage Temperature: -40 ~ +80 degrees Celsius
Ordering options:
Model: FC, SC
The path: SX, SM, MM
main material: plastic, metal
Source: fiber optic adapter

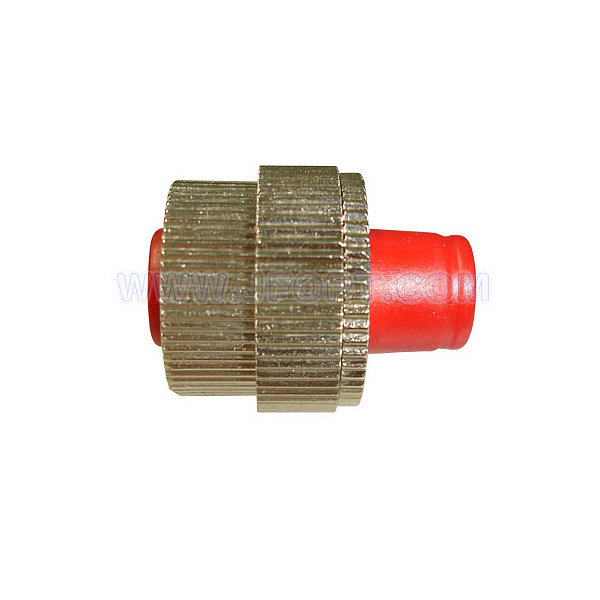

Features:
Low Insertion loss
High attenuation range (variable attenuator)
Connector type: FC-FC
Application:
Variable type
Low insertion loss deviation
High precision and stability of attenuation value (variable type)
Specification:
Return loss: >=50dB (PC), >=60dB (APC)
Wavelength: 1310nm or 1550nm
Attenuation range:0-30dB
Operating temperature: -40~+80oC
Storage temperature: -40~+80oC
Source: fiber optic attenautor

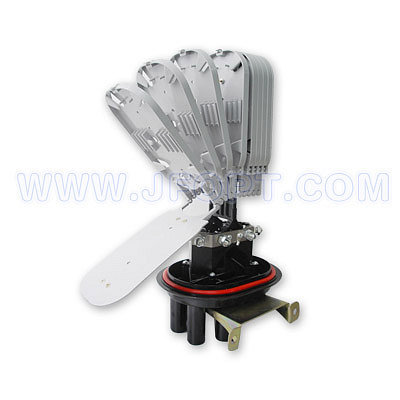

240 cores dome heat shrinkable capacity fiber optic closure - φ220x455
Fiber Splice Joint Closure Dome & Heat Shrinkable Type Specification
Key Features:
The box add ageing-resistant in imported high tensile construction plastic out-faster is made up of stainless steel.
Overlap structure in splicing tray easy to install
Suitable for ordinary fiber and ribbon fiber
Perfect leak proofness and fine function
Perfect and reliable sealing operations
Full accessories for convenient operations
Fiber optic splice closure can be used repeatedly
High reliability
For aerial, and direct buried applications
Specifications:
Temperature: -40 to +80 degrees Celsius
Atmosphere: 70 to 106kpa
Sealing property at normal temperature: Internal pressure: 70 KPa, without decrease in 72hours
High temperature sealing property: internal pressure: 70KPa, without decrease in 168 hours at 60 degree
Insulated resistance: >2 x 104MΩ
Intensity: 15KV (DC) not being broken down, has no flying arc.
Add ional Loss: No additional loss when optic fibers are winded in the splice trays
The-ageing time of the material of the enclosure is beyond 20 years
Source: fiber optic closure
