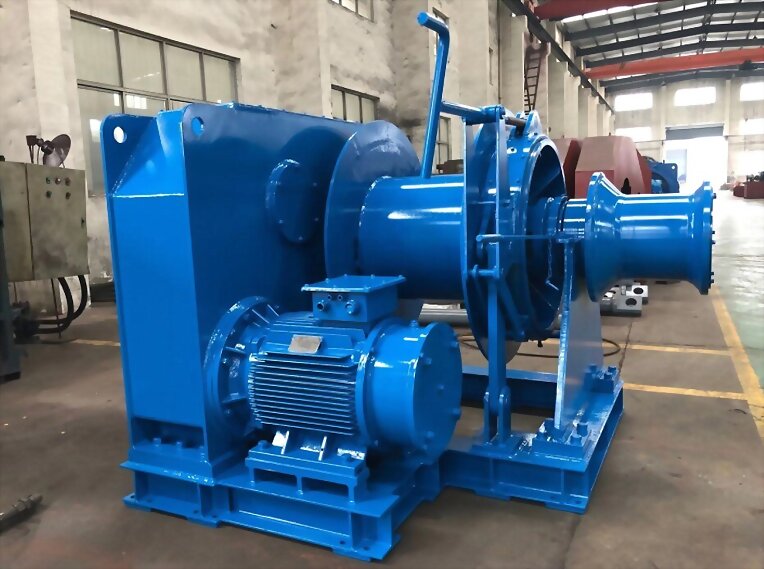

In the realm of maritime operations, ship winches stand as essential mechanical workhorses, playing a pivotal role in tasks ranging from mooring and anchoring to cargo handling and towing. These robust machines rely on a complex interplay of various components to ensure their efficiency, reliability, and safety. In this article, we delve into the main components of ship winches, uncovering the intricate mechanisms that make these devices the backbone of maritime endeavors.
1. Drum or Spool
At the heart of every ship winch is the drum or spool, a cylindrical component around which the rope, cable, or wire is wound and stored. The drum's design and size depend on the winch's intended use and load capacity. A larger drum accommodates more rope, allowing for longer cable runs. The drum's construction, such as grooves or flanges, ensures that the wound rope remains neatly aligned and prevents tangling during operation.
2. Rope or Cable
The rope or cable is the connection between the winch and the load, making it one of the most critical components. The material and construction of the rope are chosen based on factors such as the winch's load capacity, the environmental conditions it will face, and the type of task it will perform. Wire ropes and synthetic ropes are common choices, each with its own set of advantages and limitations. The rope's strength, flexibility, and resistance to wear are paramount in ensuring safe and efficient operations.
3. Motor or Power Source
The motor or power source is the driving force behind the winch's operation. Depending on the type of ship winch, this component can be an electric motor, hydraulic motor, or pneumatic motor. Electric motors are widely used due to their ease of control, efficiency, and suitability for various applications. Hydraulic motors offer exceptional torque and are preferred in heavy-duty operations, while pneumatic motors find use in environments where electrical or hydraulic systems might be hazardous.
4. Gearbox and Gear Train
The gearbox and gear train are responsible for converting the motor's rotational motion into the pulling force required to lift or move loads. The gearbox contains a system of gears that change the speed and torque of the motor's output. Different gear ratios can be employed to optimize the winch's performance for different tasks. These components ensure that the winch operates smoothly, providing controlled movement and preventing sudden jerks.
5. Brake System
The brake system is an integral safety feature of ship winches, preventing the load from slipping or moving when the winch is not actively operating. There are various types of brake systems, including mechanical, hydraulic, and electric brakes. The brake engages automatically when the winch is not under power, and it releases when the winch is in operation. The brake's reliability is paramount for preventing accidents and maintaining the safety of personnel and equipment.
6. Control Mechanism
The control mechanism enables operators to manage the winch's movements effectively. Depending on the winch's complexity and usage, control mechanisms can range from basic manual controls to advanced electronic systems. Remote control options have become increasingly popular, allowing operators to manage winch operations from a safe distance. Accurate control is vital for precise load handling, especially in delicate operations or adverse conditions.
7. Frame and Base
The frame and base of the winch provide the structural support and stability needed to handle heavy loads and resist dynamic forces during operation. The design and construction of these components consider factors such as the winch's load capacity, the environment it will be exposed to, and the mounting requirements. A robust frame and secure base ensure that the winch remains steady and reliable even under demanding conditions.
8. Bearings and Seals
Bearings and seals are essential for smooth movement and protection against contaminants. Bearings reduce friction between moving parts, ensuring efficient operation of components like the drum and gears. Seals prevent dirt, water, and other particles from entering critical areas, prolonging the lifespan of the winch and maintaining its performance over time.
Conclusion
Ship winches are intricate machines composed of various components working in harmony to fulfill diverse maritime tasks. Each component plays a specific role in ensuring the winch's functionality, reliability, and safety. By understanding the purpose and interaction of these components, maritime professionals can effectively operate, maintain, and troubleshoot ship winches, contributing to seamless and efficient maritime operations. As technology continues to advance, the evolution of these components promises even greater capabilities and reliability in the world of ship winches.
