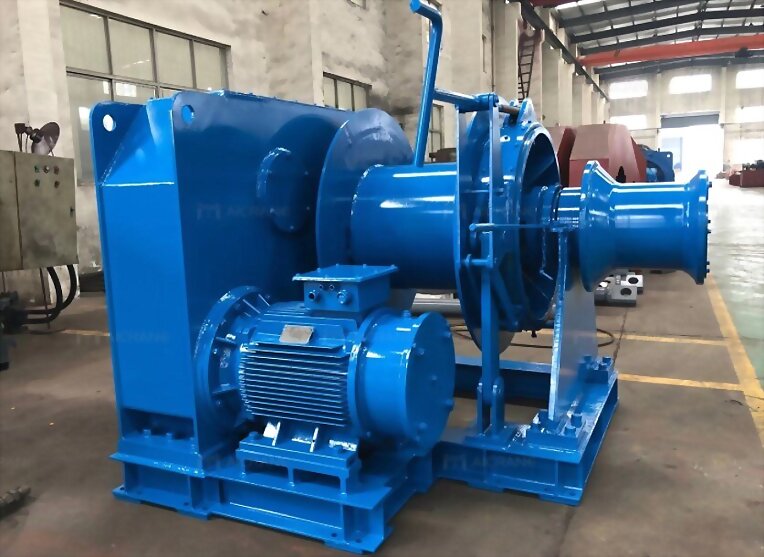

The Main Structure of Marine Drum Winch

A marine drum winch, also known as a marine anchor winch or marine mooring winch, has a specific structure designed to handle the demands of marine operations. Here are the main components and structure of a typical marine drum winch:

Drum: The drum is a cylindrical component around which the wire rope or cable is wound. It is usually made of steel and has flanges on both ends to prevent the wire rope from slipping off. The drum rotates to wind or unwind the wire rope during the winching operation.

Frame: The frame provides the structural support and stability for the winch components. It is typically made of sturdy steel or other robust materials to withstand the loads and forces encountered during marine operations. The frame may be designed as a compact unit or as separate components that are assembled together.

Bearings: Bearings are used to facilitate the smooth rotation of the drum. They are typically installed at both ends of the drum shaft to reduce friction and enable efficient operation. High-quality bearings are essential to ensure the longevity and smooth functioning of the marine drum winch.

Gearbox: The gearbox is responsible for transmitting and adjusting the power from the winch motor to the drum. It allows for speed control and torque adjustment, enabling the winch to operate at different speeds and handle varying loads. The gearbox may have multiple gears or be equipped with a gear reduction system for increased torque.

Electric or Hydraulic Motor: The marine drum winch is powered by either an electric motor or a hydraulic motor. The motor provides the necessary power to drive the winch and rotate the drum. Electric motors are commonly used for smaller winches, while hydraulic motors are preferred for larger winches due to their higher power capabilities.

Control System: The winch is operated through a control system that includes switches, buttons, and possibly a control panel or console. The control system allows the operator to start, stop, and control the winching operation, adjusting the speed and direction of the drum rotation.

Braking System: A marine drum winch is equipped with a braking system to control the movement of the drum and hold the load securely in place. The braking system prevents the drum from unwinding unintentionally and provides the necessary holding force to maintain the load's position. It ensures safety during mooring or anchoring operations.

Wire Rope or Cable: The wire rope or cable is wound around the drum and serves as the lifting medium. It provides the necessary strength and flexibility to handle the loads encountered in marine applications. The wire rope or cable is securely attached to the load, such as an anchor or mooring line.

The specific design and features of a marine drum winch can vary based on factors such as the load capacity, line speed requirements, power source (electric or hydraulic), and intended marine application. Different marine winches for sale may have additional features, such as load sensors, limit switches, and remote control capabilities, to enhance safety and operational efficiency.
